Most Advanced Technology, Best Quality.

Products

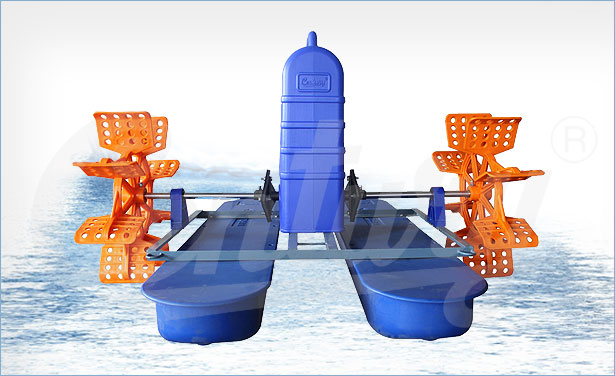

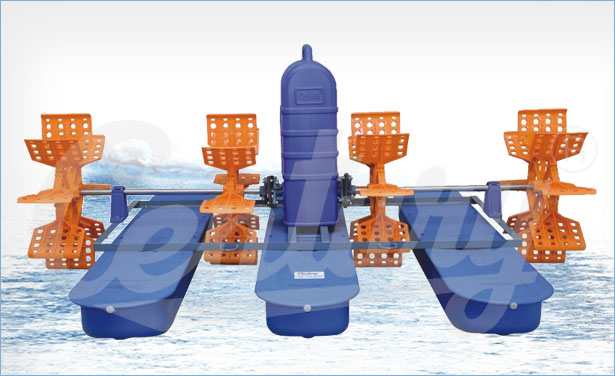

Paddle Wheel Aerator

Paddle Wheel Aerator is well design for high efficency in oxygen availablity. Our paddle wheel aerator have low power consupmption which can splash maximum water & devlop fine bubble. Our paddle wheel aerator have synthetic rubber bush mounted at the end to minimize resistance against continous friction & float are made of High Grade HDPE with UV Protection which with stand against any crack or leakage problem. Our shaft are made of 100% SS 304 Solid. Our gearbox are bewel type & motor is high efficient. Our motor cover are made from 2 layer HDPE which give more life & durable. Our frame are made from SS 304. We are having following made in paddle wheel aerator.

HP	FAN	PHASE
1 HP	2 Fan	1/3 Phase
1 HP	4 Fan	1/3 Phase
2 HP	4 Fan	1 Phase
2 HP	4 Fan	3 Phase

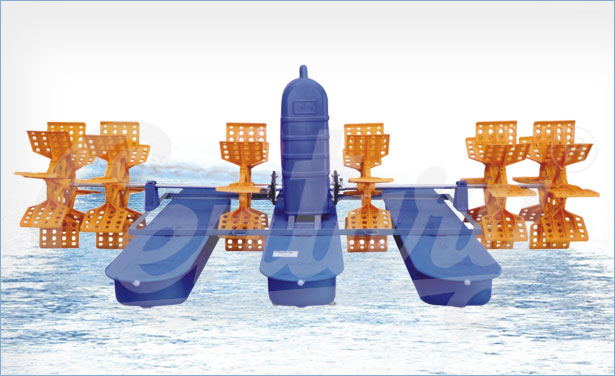

2 HP	6 Fan	3 Phase

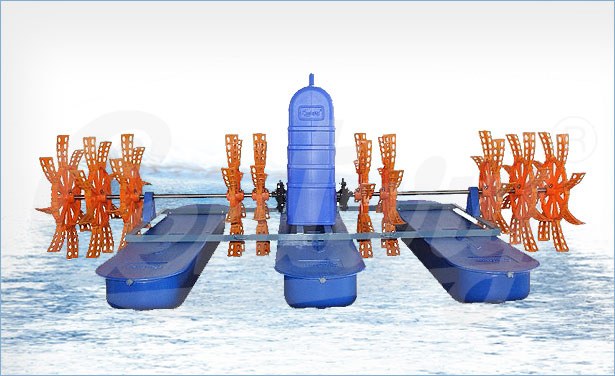

2 HP	10 Fan	3 Phase
3 HP	6 Fan	3 Phase
3 HP	10 Fan	3 Phase

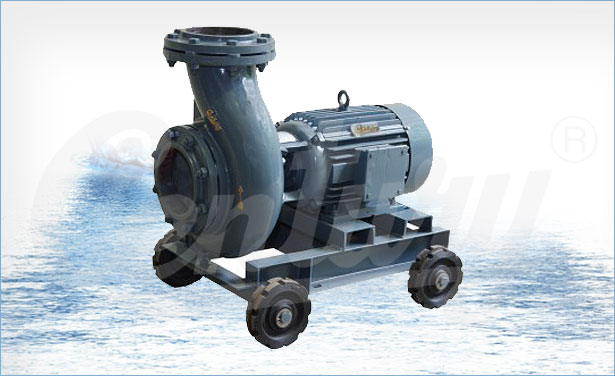

MonoBlock Pump Set

Our Monoblock are easy installation & low operating cost. High efficincy & low maintainence.

Operated on a comman shaft dynamically balanced rotors & impellers ensure vibration free performance & enhanced life.

Pump Size	Motor HP.	Head (Mtr)	Discharge (LPS)
6 × 6	7.5	5 - 11	24 - 52
4 × 4	5.0	6 - 14	17 - 32

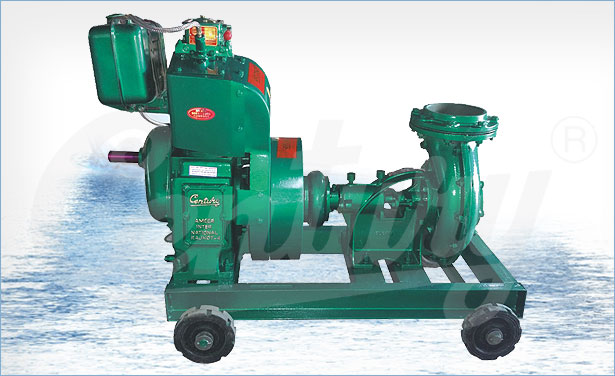

10 HP A/C Engine Pumpset

We manufacture Air Cooled Diesel Engine under the supervision of our skilled engineers & technical experts. Our engine are high fuel efficient & having low maintenance cost.

Pump Size	Motor HP.	Head (Mtr)	Discharge (LPS)
6 × 6	10	5 - 11	24 - 58
4 × 4	8	6 - 14	17 - 32

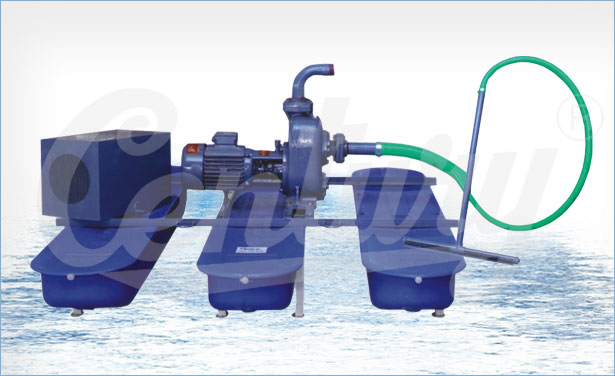

Sludge / Mud Pump

Our Sludge / Mud Pump manufacture are Self Priming Centrifugal Pump that is configured to lift mud pump. Our Mud Pump have outstanding performance & excellent corrosion resistance & enhance life expectancy. Our Mud Pump parts are dynamically balanced to ensure vibration free operation.

Motor HP.	Pump Size	Head (mtr)	Discharge (LPS)
2	1.5 × 1.5	10 - 18	7 - 3
3	2 × 2	10 - 24	9 - 3
5	3 × 3	6 - 6	19 - 10

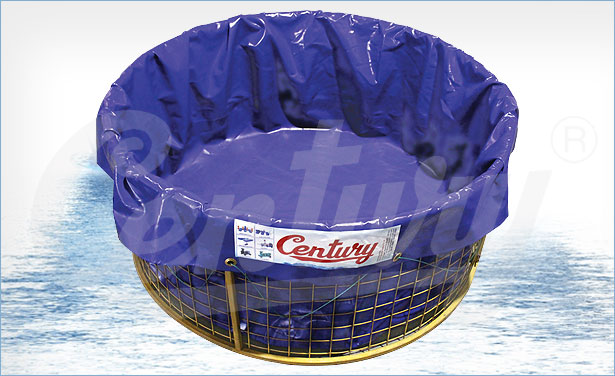

Folding Tank

Mts.	Litre @ 1 Mts.
5	19500
7	38000
10	78000
12	113000
15	175000

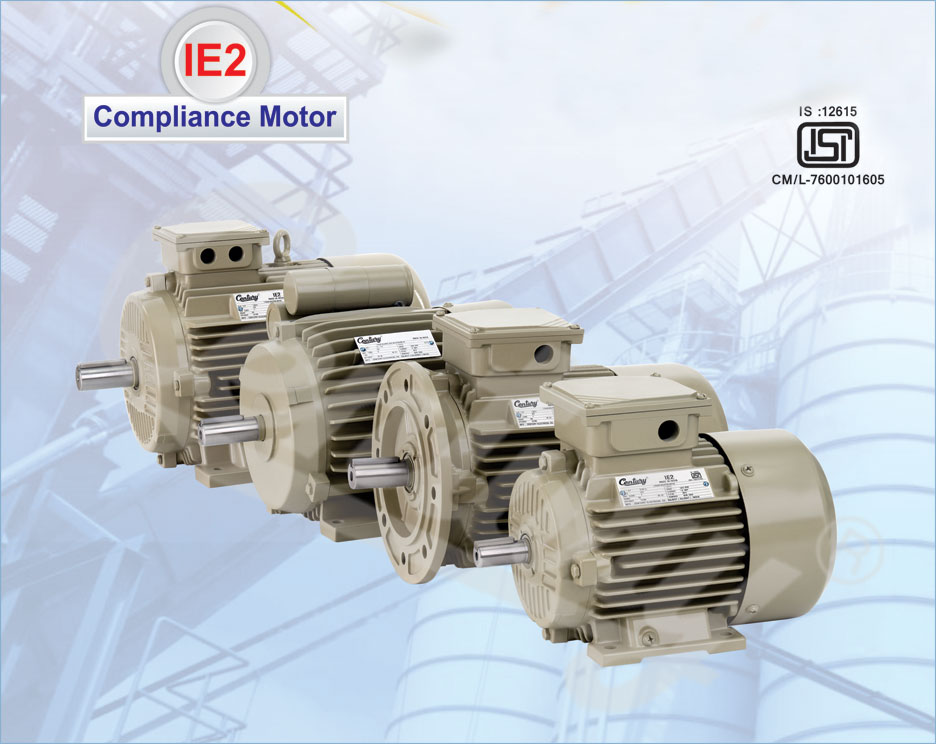

Induction Motor

Century Aqua Culture offers wide range of IE2 Compliance High Quality Induction Motor. Our induction motors complies with IS:12615 Indian Standards.

PERFORMANCE DATA SHEET

Century 3 Phase 415V, 50 Hz, 4 Pole, 1500 RPM Induction Motors

H.P.	K.W.	FRAME SIZE	AMP.	EFF.	TORQUE	NETT WEIGHT Kg.
0.25	0.18	63	0.8	69.5	0.13	7
0.50	0.37	71	1.0	70.1	0.26	9
0.75	0.55	80	1.4	75.1	0.38	13.5
1.00	0.75	80	1.7	79.6	0.52	16
1.50	1.10	90S	2.4	81.4	0.75	20
2.00	1.50	90L	3.2	82.8	1.02	25
3.00	2.20	100L	4.4	84.3	1.49	29
4.00	3.00	112M	5.8	85.5	2.03	40
5.00	3.70	112M	7.1	86.3	2.49	45
7.50	5.50	132S	10.5	87.7	3.69	57
10.00	7.50	132M	14.1	88.7	5.04	66
12.50	9.30	160M	17.5	89.3	6.23	100
15.00	11.00	160M	20.5	89.8	7.36	105
20.00	15.00	160L	27.5	90.6	10.04	125

Century 1 PHASE 220V, 50 Hz, 4 POLE, 1440 RPM INDUCTION MOTORS

H.P.	K.W.	FRAME SIZE	AMP.	EFF.	TORQUE	NETT WEIGHT Kg.
0.50	0.38	90	3.0	75	0.26	16.5
1.00	0.75	90	5.0	76	0.52	18.0
1.00	0.75	90	5.0	77	0.52	20.5
1.50	1.10	90	8.0	75	0.75	22.5
1.50	1.10	100	8.0	78	0.75	26.5
2.00	1.50	100	10.0	80	1.02	28.5
2.00	1.50	112	10.0	82	1.02	36.0
3.00	2.20	112	14.0	82	1.50	40.0
